Codice: 000006410

Prezzo: EUR € 60,00

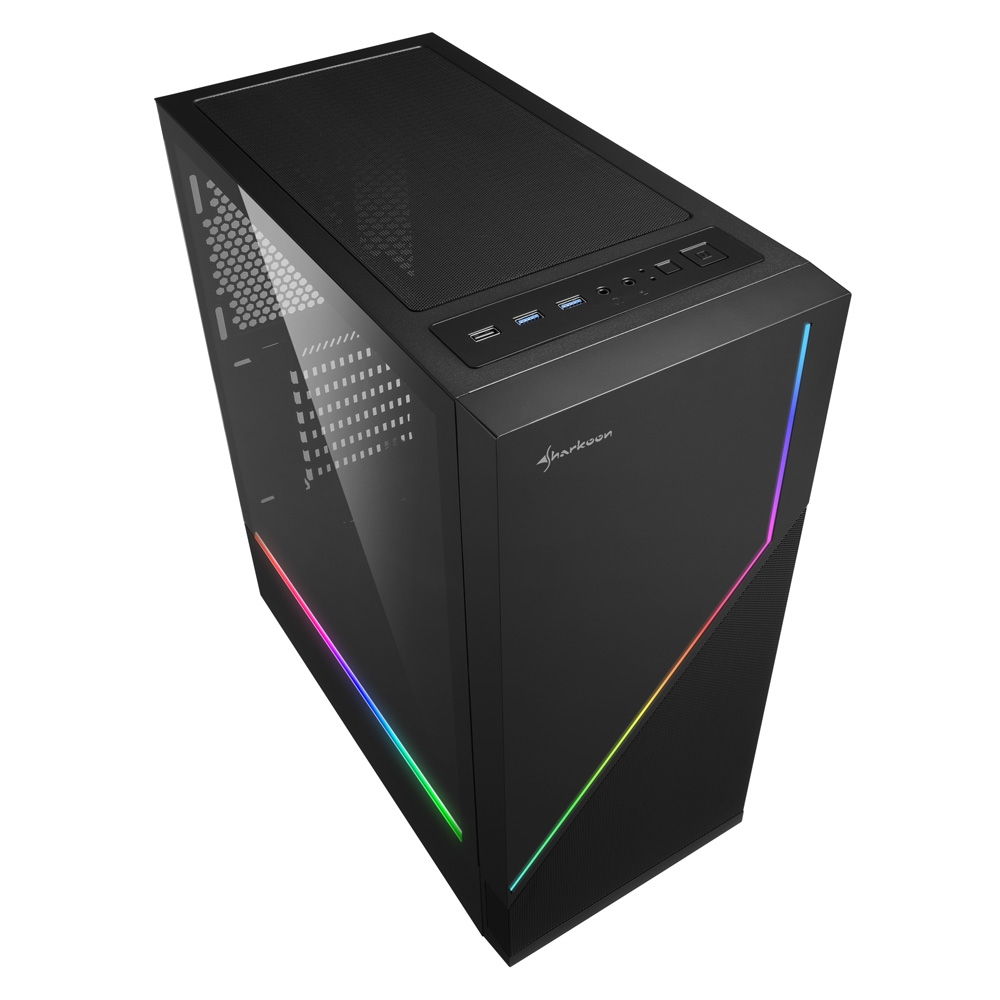

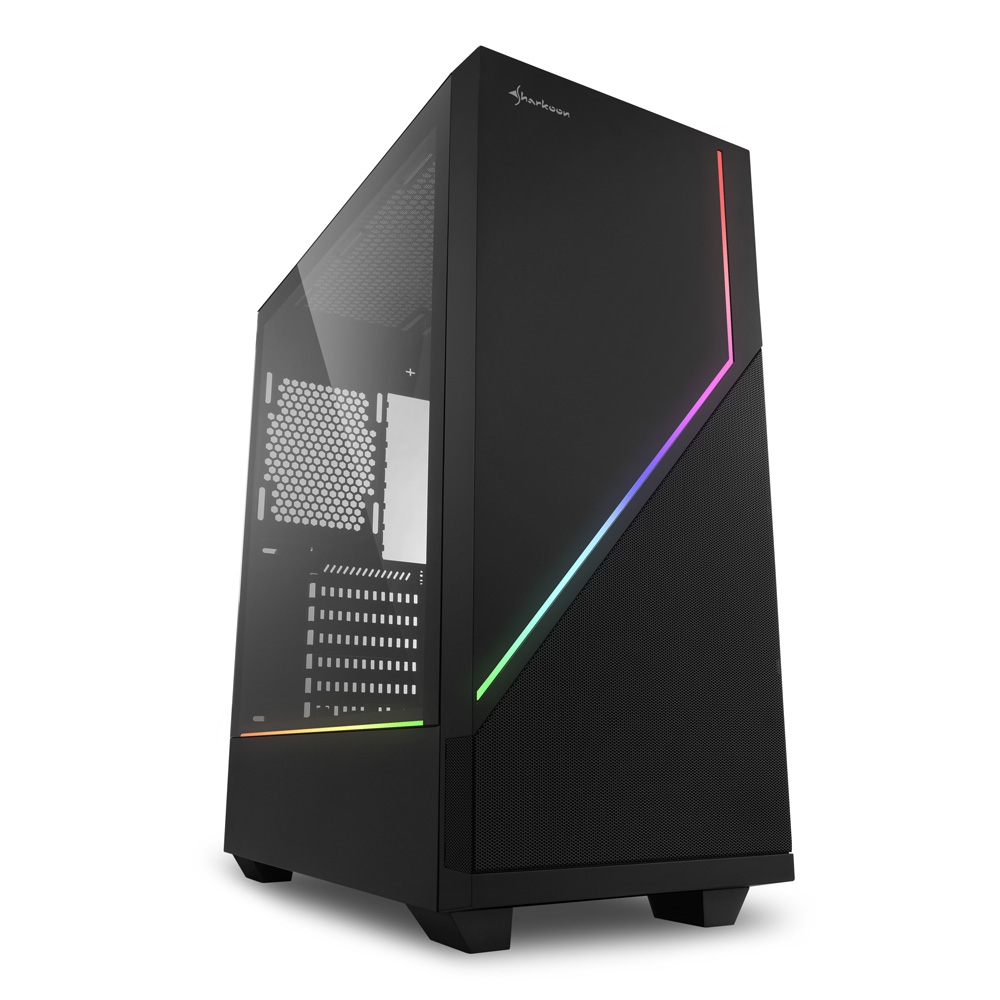

Let the colors flow: The RGB FLOW from Sharkoon presents itself as an elegant yet unobtrusive ATX midi tower with its tempered glass side panel and black chassis with clear lines. The minimalistic design is intersected by a stream of colors which flows through two integrated LED strips from the front panel to the side of the case, providing the built-in hardware with an atmospheric highlight. The RGB FLOW is not just an eye-catcher. With its mesh element on the front panel, locations for six fans or a radiator and numerous installation possibilities for data storage, it is also an ideal home for your hardware.

Go with the FLOW. The RGB FLOW is equipped with two addressable LED strips which visually connect the front and side panel. Both strips are daisy chained and can be easily operated using the four-port RGB controller which is integrated in the case. Fourteen illumination modes can be selected using the case’s reset switch. Alternatively, the LED strips and three more RGB components can be controlled via a mainboard which has the appropriate software and an RGB header with a 5V-D-coded-G or 5V-D-G pin configuration.

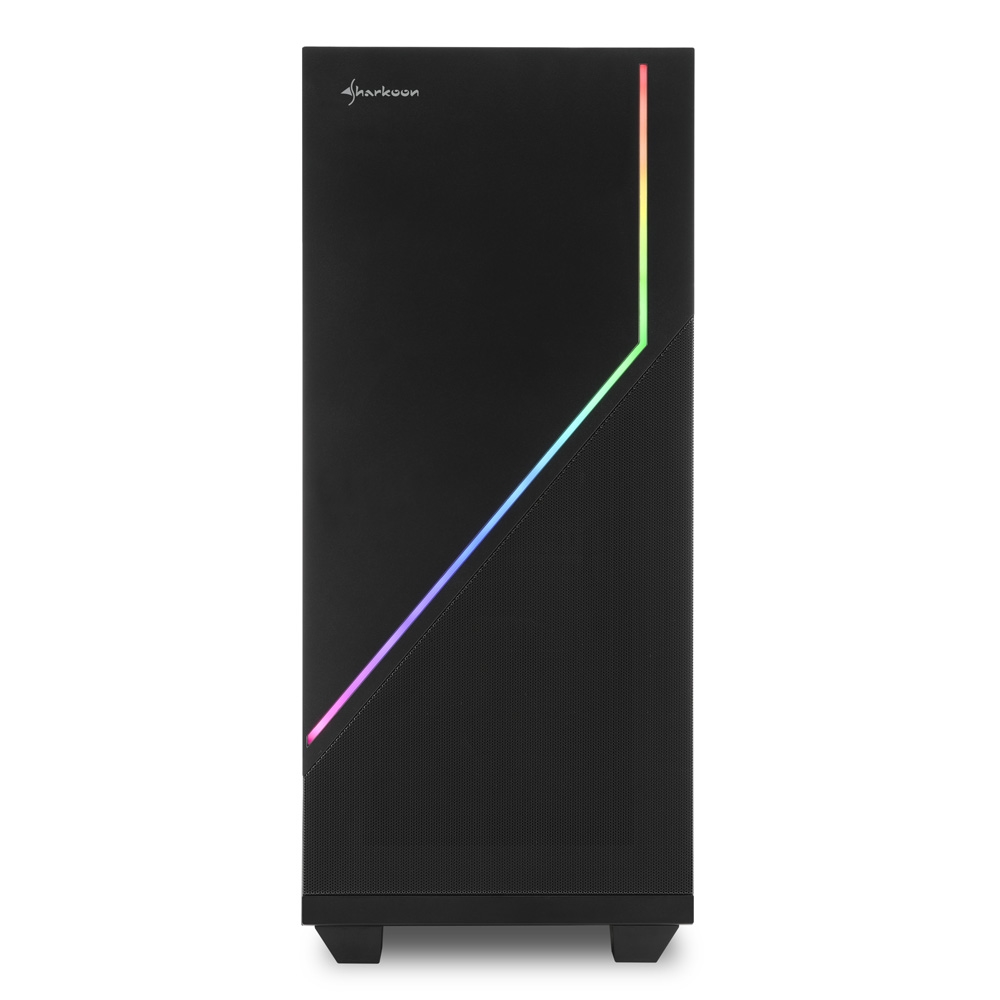

Optimal AirFLOW. Beneath the LED strip on the front panel, the ATX midi tower is equipped with a fine mesh grille, ensuring an optimal intake of air which is supplied by the pre-installed 120 mm fan. If desired, five more fans can be installed within the case. Two additional 120 mm fans will have room behind the front panel, while one more fan can be installed on the back panel and another two under the top panel. Despite the compact design, the RGB FLOW also has room for radiators, with 6.4 cm provided behind the front panel and 5.5 cm under the top panel.

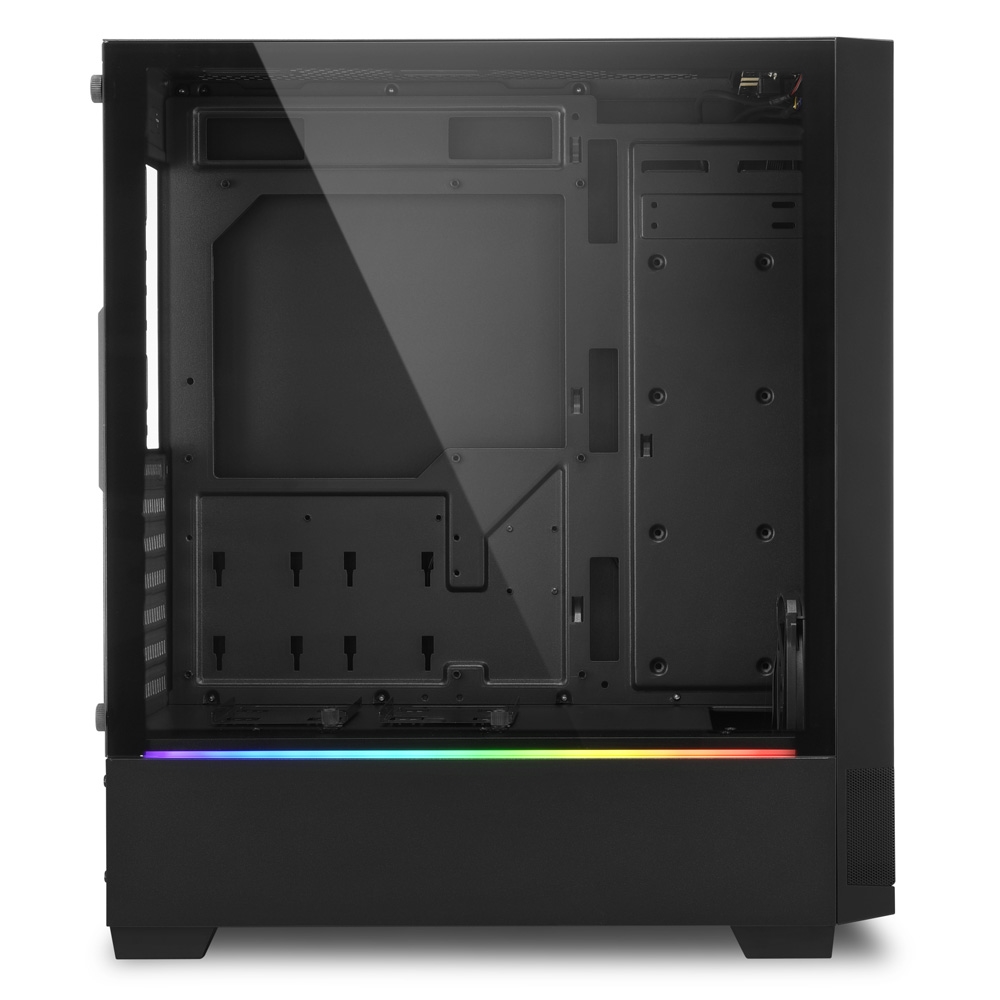

Window with RGB Highlight. The RGB FLOW has a side panel made of tempered glass, behind which the installed hardware is displayed. The side panel is without obvious fastening and is attached only to the back of the case with easily removable thumb screws. In addition, the hardware is put into perspective, illuminated in a choice of colors thanks to the LED strip at the bottom of the glass panel.

Compact Design with Power Supply Tunnel. The RGB FLOW has a compact design that can cut a fine figure anywhere, without having to make compromises in terms of compatibility. Graphics cards with a length of up to 35 cm have room underneath a CPU cooler with a height of up to 15.7 cm. Power supplies with a maximum length of 21.5 cm can disappear inside the power supply tunnel on the bottom panel of the case.

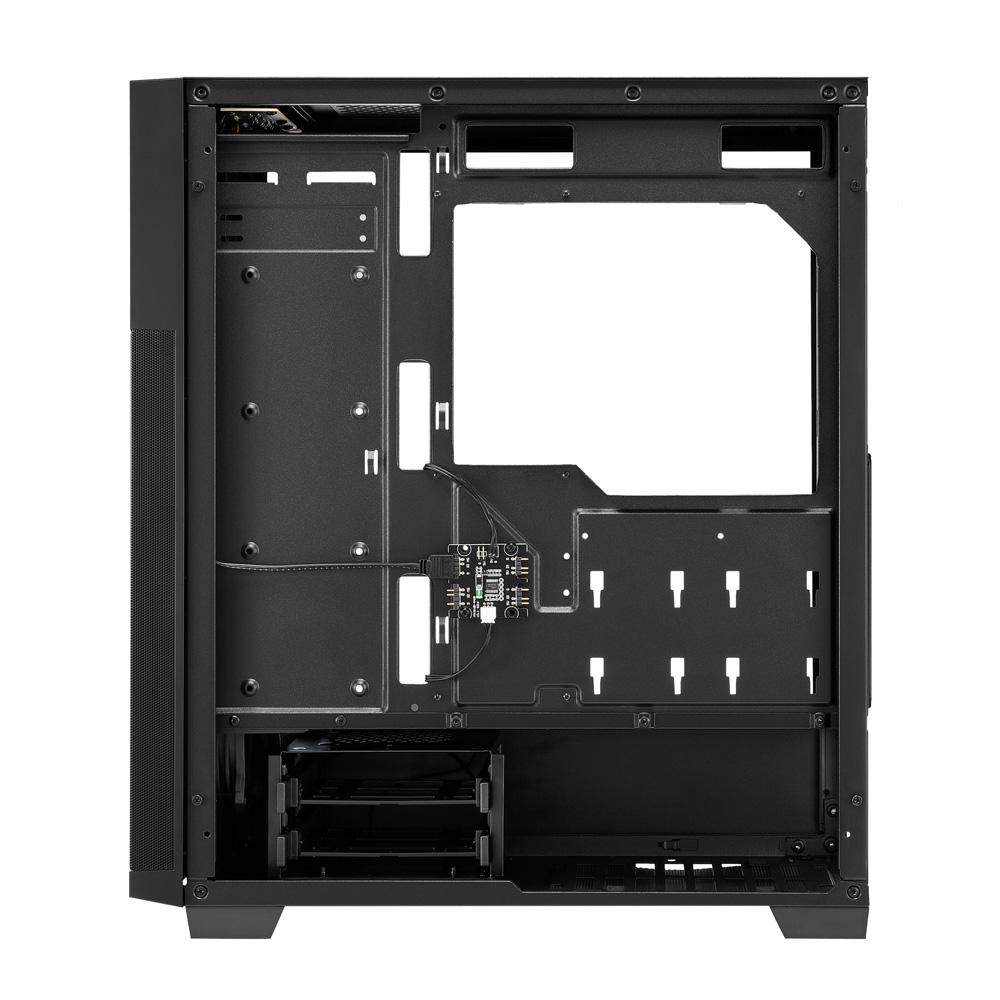

Variable Installation of Drives. Also, with the installation of data storage, the RGB FLOW makes no compromises. The case can house up to six SSDs, which can be mounted on the power supply tunnel or on the back of the mainboard tray. The HDD/SSD cage offers space for either two more SSDs or two 3.5" hard drives.

Compatibility
Mainboard
Mini-ITX, Micro-ATX, ATX
Max. Length Graphics Cards
35 cm
Max. Height CPU Cooler
15.7 cm
Max. Length Power Supply
21.5 cm
Max. Height Radiator incl. Fan (Front)
6.4 cm
Max. Height Radiator incl. Fan (Top)
5.5 cm
General
Form Factor:
ATX
Expansion Slots:
7
Interior Painting:
✓
Tool-free Devices Installation:
✓
Cable Management System:
✓
Side Panel:
Tempered Glass
Weight & Dimensions
Weight:
6.0 kg
Dimensions (L x W x H):
42.4 x 20.6 x 48.1 cm
RGB Compatibility
Type:
Addressable
Ports:
4-Port
Manual Control:
14 Modes
Mainboard Compatibility:
MSI Mystic Light Sync, ASUS Aura Sync, Gigabyte RGB Fusion Ready, ASRock Polychrome Sync
RGB pinout:
5V-D-G & 5V-D-coded-G
Max. Drive Bays
3.5":
2
2.5":
6
I/O
USB 3.0 (Top):
2
USB 2.0 (Top):
1
Audio (Top):
✓
Fan Configuration
Front Panel:
1x 120 mm fan (pre-Installed) or 2x 120/140 mm fan (optional) or radiator (optional)
Rear Panel:
1x 120 mm fan (optional)
Top Panel:
2x 120 mm fan or 2x 140 mm fan (optional)
Compatibility
Mainboard:
Mini-ITX, Micro-ATX, ATX
Max. Length Graphics Cards:
35 cm
Max. Height CPU Cooler:
15.7 cm
Max. Length Power Supply:
21.5 cm
Max. Height Radiator incl. Fan (Front):
6.4 cm
Max. Height Radiator incl. Fan (Top):
5.5 cm
Package Contents
RGB FLOW
Accessory Set
Manual
EAN Code
4044951028146
