Codice: 000006408

Prezzo: EUR € 115,00

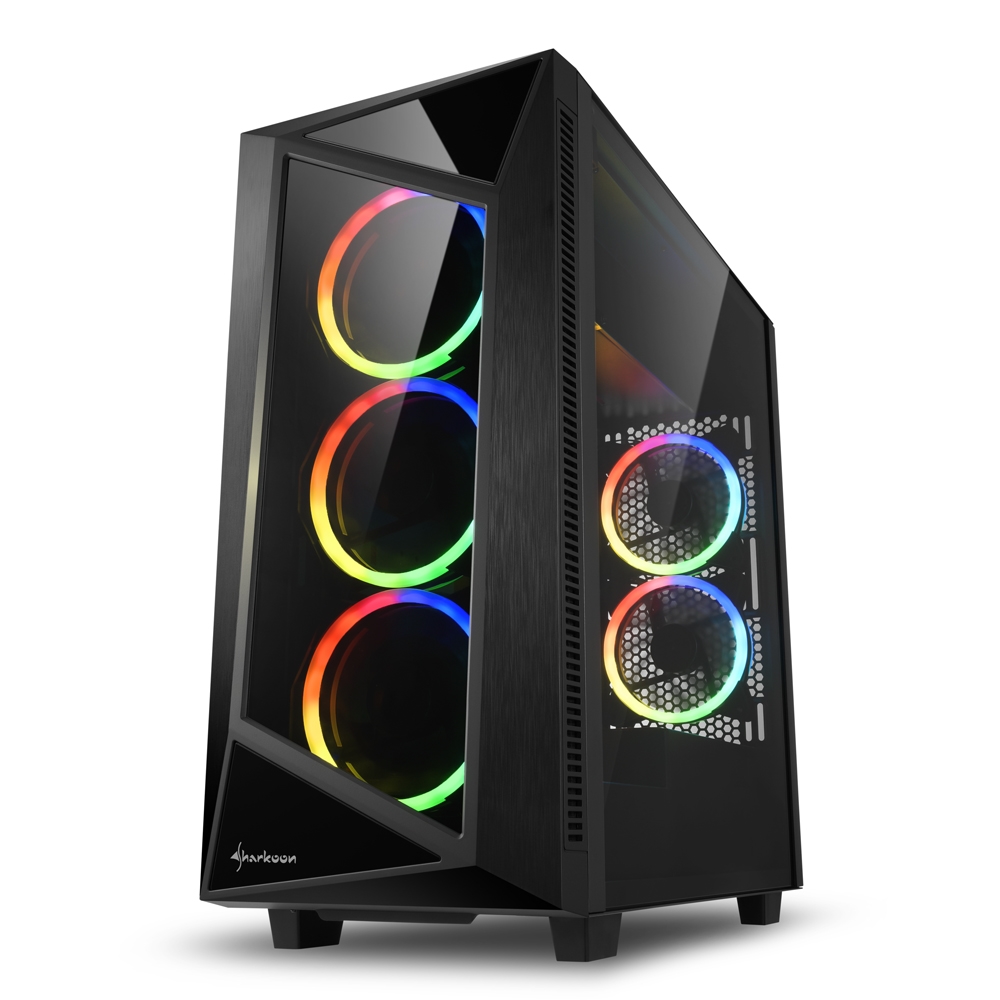

A new approach in case design: The revolutionary REV200 ATX midi tower delivers a breathtakingly new way of presenting hardware and a completely new experience when creating your PC build: Because now, for the first time, graphics cards can be vertically installed around a mainboard which has been turned 90 degrees. The five pre-installed 120 mm fans perform precise cooling while ample cable pass-throughs, a cable compartment in the top panel and a multi-functional tunnel in the bottom of the case ensure that only the important elements are highlighted by the addressable RGB illumination.

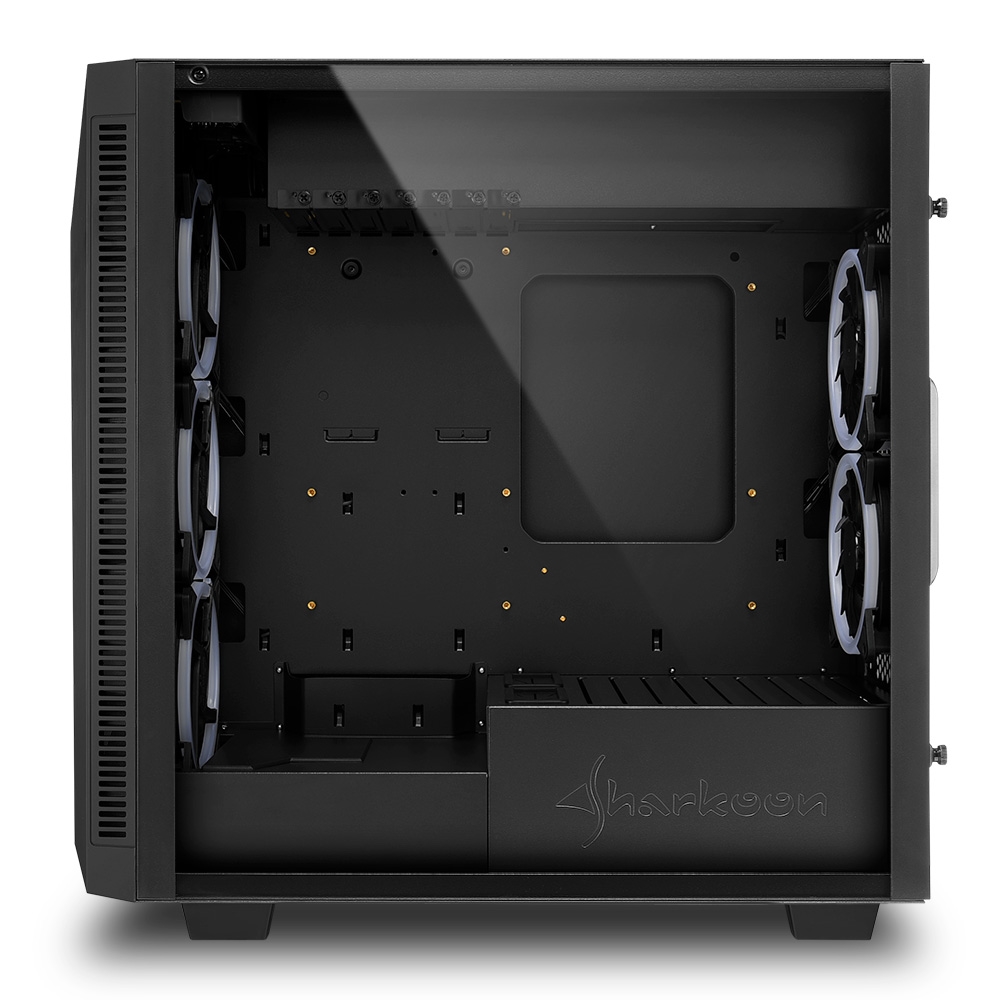

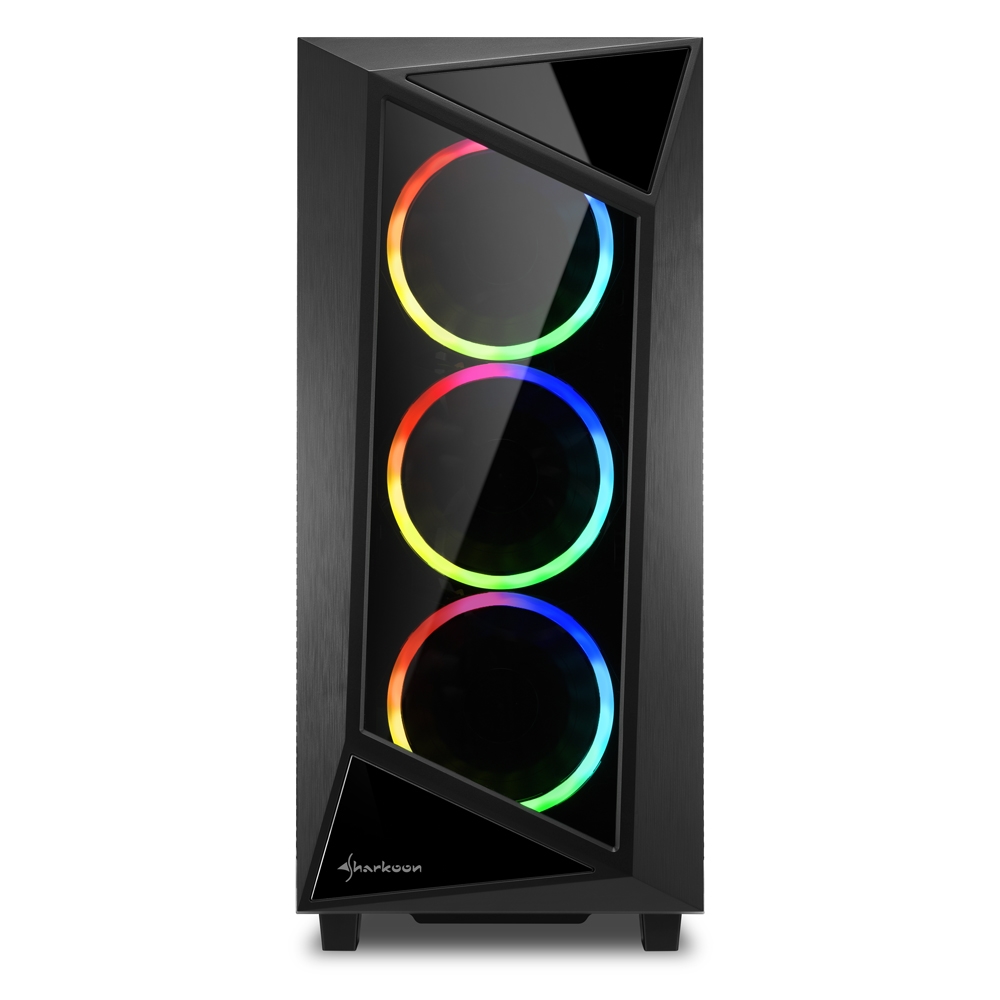

REVolutionary Case Design. Apart from a side panel made of tempered glass, the REV200 also has a minimalistic front panel which is reminiscent of a crystal. However, the most special highlight is the revolutionary case design with a new look and feel. We shifted the tempered glass side panel to the right side, a rarity in PC case design, which allows the user to position their case on the left side of their desktop and still showcase the beautiful inner components. The REV200 is thus especially suitable for desks with the left side against a wall. With the PC case placed on the left of your desktop, your setup can be optimized for more mouse freedom of movement, larger mouse mats and better use of space on your desk.

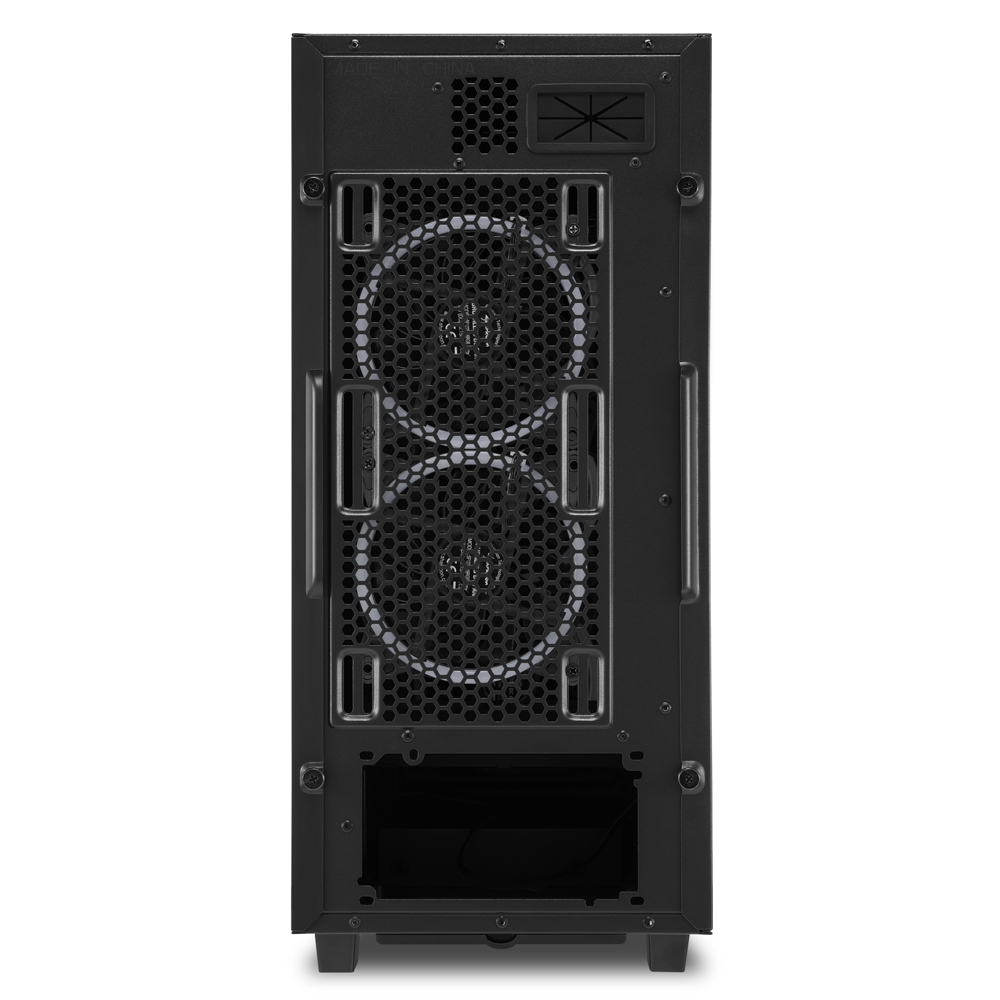

An Airflow which Comes to the Point. Thanks to this new type of case design, the REV200 not only has three addressable RGB fans behind the front panel, but there are also two identical fans in the rear of the case. This allows air to flow directly onto the graphics card and be effectively transported through the back of the case. Even the decoupled power supply can be mounted, as desired, in two different directions. At the same time, dust filters protect each of the case air-intakes. If water cooling is preferred, there is space for a 240 mm radiator at the front and/or rear of the case. Also, by simply removing the tunnel’s cover as well as one of the two HDD/SSD cages from inside the tunnel, space is made available for a 360 mm radiator at the front of the case.

Crystal-Clear Illumination. To ensure that the case’s illumination shines to its fullest effect, the REV200 is equipped with an especially elegant side panel made of tempered glass, which has no visible screws when viewed directly from its side. The pre-installed RGB controller provides a uniform illumination in 16.8 million colors for all five fans as well as three more optional LED components. The fans of the REV200 are compatible with Asus Aura Sync, MSI Mystic Light Sync, Gigabyte Fusion and ASRock Polychrome SYNC. For mainboards which do not have a suitable RGB header with a 5V-D-G or 5V-D-coded-G pinout, 14 lighting modes are available via the RGB controller.

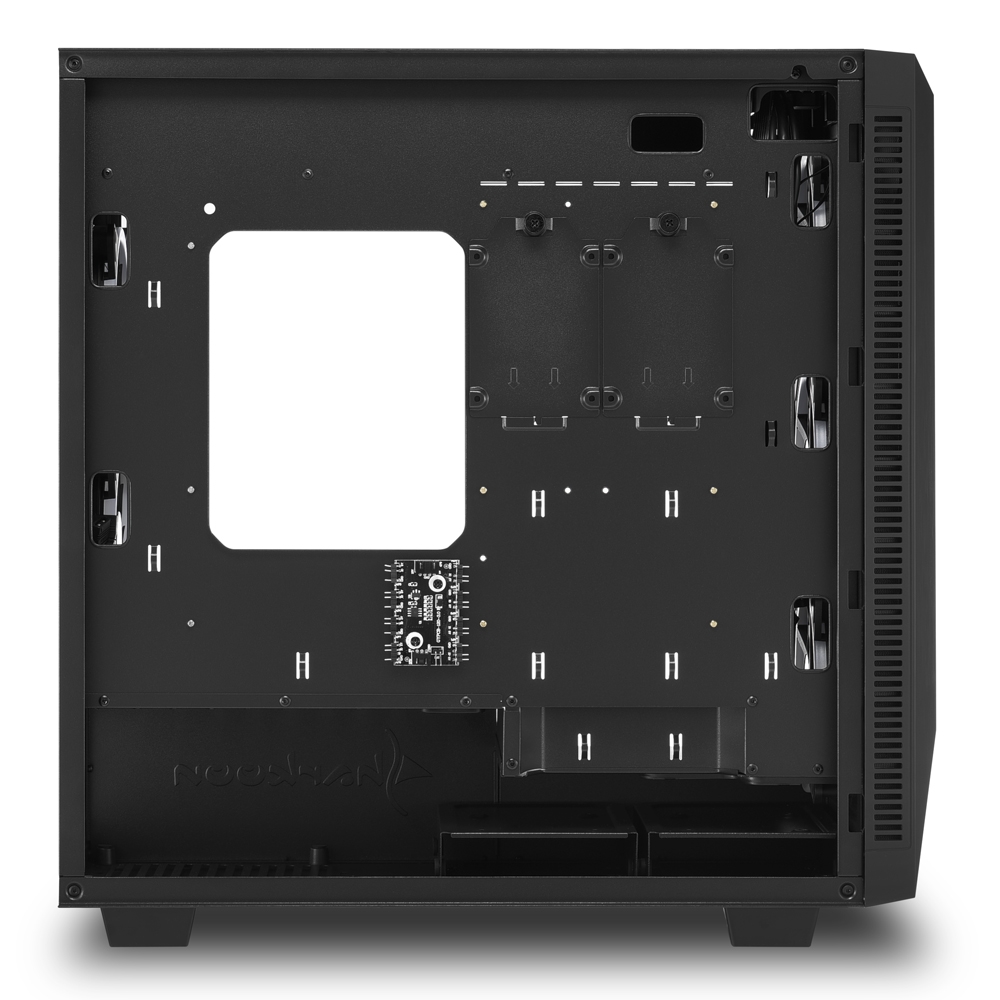

Tidy Cable Management. The REV200 will always stay tidy inside thanks to various possibilities for hiding the cabling out of view: Apart from several cable pass-throughs, there is also a spacious cable compartment in the top of the case for the external mainboard and card connections, providing an organized cable management. Here, the cables are held together with a cable clip and led to the outside of the case via a cable pass-through. The top panel has a magnetic cover for easy access to the cable compartment and to protect from dirt and dust.

Plenty of Space. In comparison to conventional designs, there is no need to compromise with the REV200 when choosing hardware components. The case can take large graphics cards up to 32.3 cm in length and CPU coolers with a height of up to 16.5 cm. There is still enough room for power supplies up to 20 cm long.

Compatibility
Mainboard
Mini-ITX, Micro-ATX, ATX
Max. Length Graphics Cards
32.3 cm**
Max. Height CPU Cooler
16.5 cm
Max. Length Power Supply
20.0 cm
Max. Height Radiator incl. Fan (Front)
6.4 cm
Max. Height Radiator incl. Fan (Rear)
6.0 cm
** 28.5 cm for the expansion slot (Mini-ITX) above the power supply tunnel.
General
Form Factor:
ATX
Expansion Slots:
7
Interior Painting:
✓
Tool-free Devices Installation:
✓
Cable Management System:
✓
Side Panel:
Tempered Glass
Weight & Dimensions
Weight:
9.0 kg
Dimensions (L x W x H):
48.4 x 21.5 x 48.5 cm
RGB Compatibility
Type:
Addressable
Ports:
8
Manual Control:
14 Modes
Mainboard Compatibility:
MSI Mystic Light Sync, ASUS Aura Sync, Gigabyte RGB Fusion Ready, ASRock Polychrome Sync
RGB pinout:
5V-D-G & 5V-D-coded-G
Max. Drive Bays
3.5":
2
2.5":
4
I/O
USB 3.0 (Top):
2
USB 2.0 (Top):
2
Audio (Top):
✓
Fan Configuration
Front Panel:
3x 120 mm Addressable RGB Fans (Pre-Installed) or Radiator (Optional)*
Rear Panel:
2x 120 mm Addressable RGB Fans (Pre-Installed) or Radiator (Optional)*
Compatibility
Mainboard:
Mini-ITX, Micro-ATX, ATX
Max. Length Graphics Cards:
32.3 cm**
Max. Height CPU Cooler:
16.5 cm
Max. Length Power Supply:
20.0 cm
Max. Height Radiator incl. Fan (Front):
6.4 cm
Max. Height Radiator incl. Fan (Rear):
6.0 cm
Package Contents
REV200
Accessory Set
Manual
Note
* Optional radiators can be installed instead of fans.
** 28.5 cm for the expansion slot (Mini-ITX) above the power supply tunnel.
EAN Code
4044951028498
