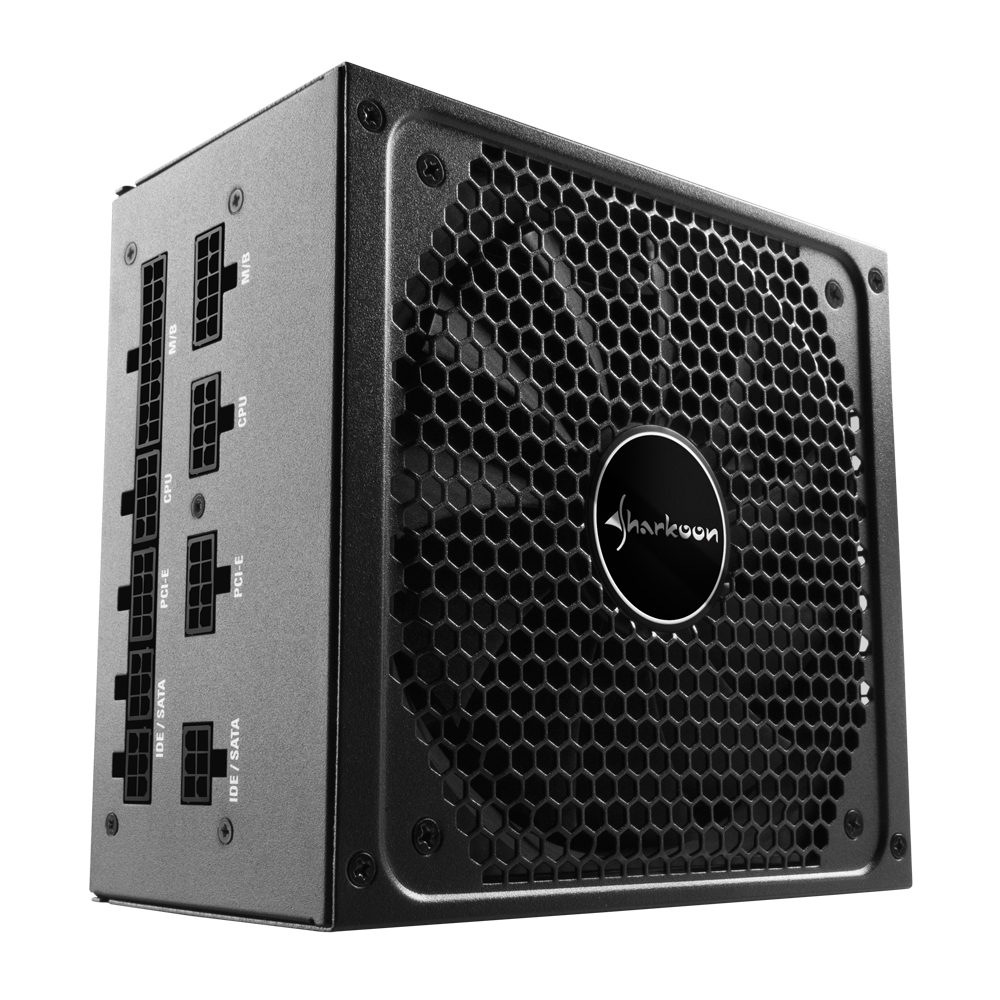

SHARKOON ALIMENTATORE SILENT STORM COOL ZERO ATX 850W, MODULAR, 80PLUS GOLD

The SilentStorm Cool Zero is a power supply certified with 80 PLUS Gold. It is equipped with modern LLC resonant converter technology and only with quality Japanese capacitors rated to 105°C. The fully modular assembly guarantees a tidy installation and appearance. The optional fan delay mode and Zero RPM mode ensure an optimal and highly adaptable cooling operation depending on the installation position.

Efficient and Safe. The SilentStorm Cool Zero is certified with 80 PLUS Gold, achieving at least 90% efficiency at 50 % load as well as 87 % efficiency at 20 % and 100 % load. In addition, the power supply is equipped with all common safety features to protect against damage: Over current and over voltage protection, under voltage protection, short circuit protection and over temperature and over power protection are all supported.

Quality Components. The exclusive use of Japanese capacitors rated to 105°C and a 135 mm fan with a fluid dynamic bearing provide a quiet and reliable operation with an average life cycle of over 100,000 hours.

Adjustable Cooling. In the fan delay mode, the power supply fan can, if required, continue to run for 60 seconds after shutdown to ensure a complete cooling of the system. In addition, with the Zero RPM mode, the fan rotation can be stopped at low to moderate loads, thus enabling a noise free operation.

Ultra-Stable Voltage Regulation. With modern LLC resonant converter technology, this power supply unit provides a constant and reliable voltage with minimum noise and heat levels.

Fully Modular and Ready for High-Performance Systems. All the cables of the SilentStorm Cool Zero are modular and can be used according to individual requirements. A handy cable bag is included for cables which are not being used. The two 4+4-pin CPU cables ensure that modern energy hungry systems can also be operated.

General

Form Factor:

ATX 2.4

Continuous Power:

850 W

ErP Compliant:

✓

Active PFC:

✓

Technology:

LLC + DC/DC

Japanese Primary Capacitors:

✓

All Japanese Capacitors:

✓

MTBF:

Min. 100,000 Hours

Operating Temperature:

0 °C - 40 °C

Standby Power Consumption:

0.16 W

Weight incl. Fixed Cables:

2.6 kg

Dimensions (L x W x H):

150 x 160 x 86 mm

Housing Color:

Black

Input

Voltage:

100 - 240 VAC

Frequency:

50 - 60 Hz

Input Current (110/230 V):

10 A

Output

12 V Rail(s):

1

Load 3.3 V:

22 A

Load 5 V:

22 A

Max. Combined Power 3.3 V + 5 V:

120 W

Load 12 V1:

70.9 A

Max. Combined Power 12 V:

850 W

Load 5 VSB:

3 A

Load -12 V:

0.3 A

Cable and Connectors

Cable Configuration:

Fully Modular

Flat Cables:

✓

Maximum Cable Length:

115 cm

Length of Mainboard Cable:

56 cm

Length of CPU Cable:

62.5 cm

Length of PCIe Cable:

55 cm + 15 cm

Cable Length to First Peripheral:

55 cm

24-Pin Mainboard Connector:

1

4+4-Pin CPU Connector:

2

6+2-Pin PCIe Connector:

4

SATA Connector:

12

IDE Connector:

2*

Floppy Connector:

1*

Fan

Fan Size:

135 mm

Bearing Type:

Fluid Dynamic Bearing

Protections

OCP (Over Current Protection):

✓

OVP (Over Voltage Protection):

✓

UVP (Under Voltage Protection):

✓

SCP (Short Circuit Protection):

✓

OTP (Over Temperature Protection):

✓

OPP (Over Power Protection):

✓

Safety Certifications

CE:

✓

FCC:

✓

CB:

✓

Package Contents

SilentStorm Cool Zero 850

Cable Bag

Set of modular cables

Power Cord

Mounting Screws

Manual

Note

* Adapter

EAN Code

4044951026487
