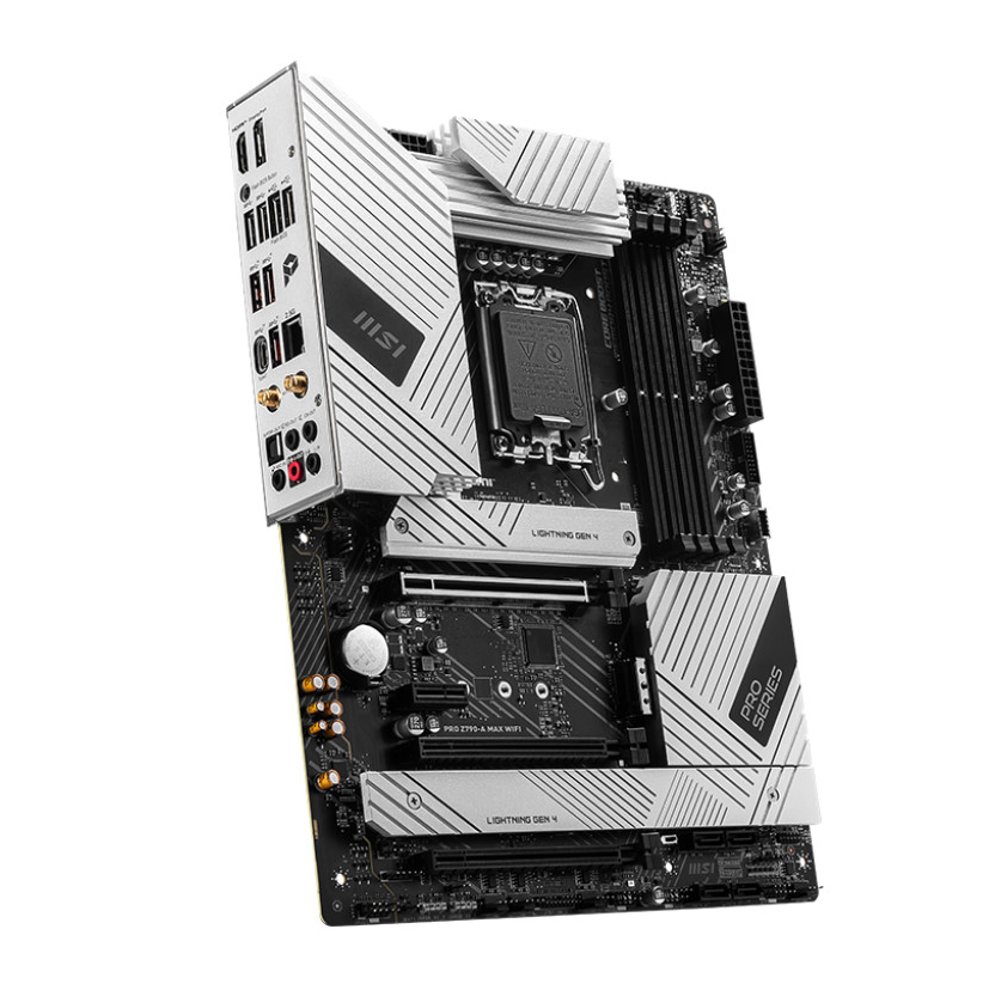

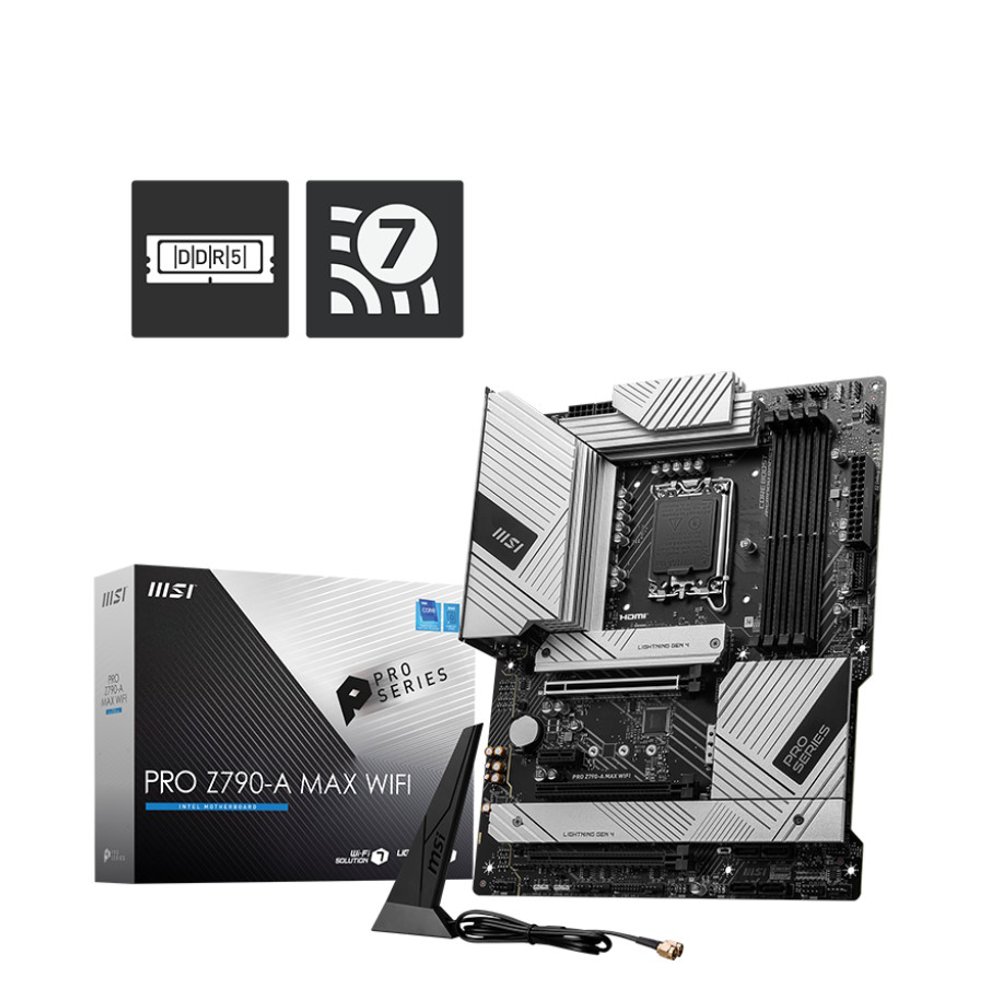

MSI PRO Z790-A MAX WIFI
Codice: 000007424
MSI PRO Z790-A MAX WIFI
CPU Support
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
CPU Socket
LGA 1700
Chipset
Intel® Z790 Chipset
Expansion Slots
1x PCIe 5.0 x16 slot
1x PCIe 4.0 x16 slot
2x PCIe 3.0 x1 slots
Display Interface
Support 4K@60Hz as specified in HDMI 2.1
DisplayPort 1.4
Requires Processor Graphics
Memory Support
4 DIMMs, Dual Channel DDR5-7800+MHz (OC)
Storage
4x M.2 Gen4 x4 64Gbps slots
6x SATA 6Gbps ports

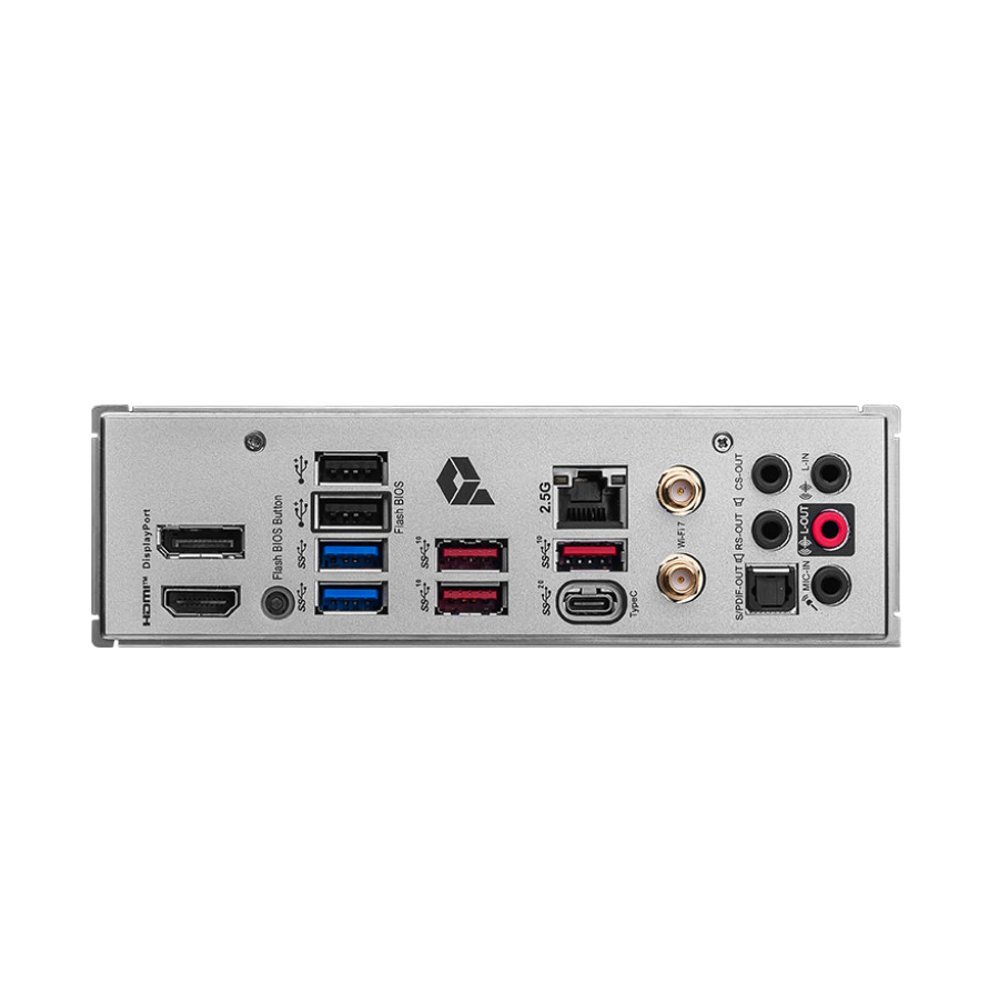

USB ports
1x USB 3.2 Gen 2x2 20Gbps (1 Type-C)
4x USB 3.2 Gen 2 10Gbps (3 Type-A + 1 Type-C)
4x USB 3.2 Gen 1 5Gbps (4 Type-A)
6x USB 2.0
LAN
Intel® 2.5G LAN
WiFi / BT
Wi-Fi 7 Solution
Bluetooth 5.4
Audio
8-Channel (7.1) HD Audio with Audio Boost 5
